Full color laser projector
- Product Features:
- Model: LN-12W
Power: 12W
IP rate: IP65
Weight: 5.5kg
-
whatsapp:
+8613592607295 -
E-mail:
enquiry@ledygoboprojector.com
Structure:
1、Laser Module：Pure diodes have a longer lifespan, higher reliability, and a smaller beam divergence.
2. Scanner: PT-A40 wide-angle, new detection technology, large scanning angle, excellent overload capacity and linearity;
3. Laser condition: Dust-proof and maintenance-free design, high-efficiency cooling, heat sink area covering 40% of the chassis area;
2. Scanner: PT-A40 wide-angle, new detection technology, large scanning angle, excellent overload capacity and linearity;
3. Laser condition: Dust-proof and maintenance-free design, high-efficiency cooling, heat sink area covering 40% of the chassis area;
Parameter:
Laser Power: 12W
Model：LD-A120
Red light wavelength -638nm：3000mW
Green light wavelength -525nm：4000mW
Blue light wavelength -455nm：5000mW
Laser Module：Pure diodes
Laser scattering Angle: <1.2mrad
The size of the laser spot: The size of the light outlet 5*6.2mm
Control signal mode :TTL/ Simulated automatic switching
Modulating voltage：≦30K
Scanning speed: 30Kpps
Scan the Angle: Standard 60 degree
Control method: SD（It has over 200 built-in effects）, Sound control, automatic operation, DMX 18/27 channels, master/slave mode, ILDA software control
Protection level: IP 65
Body size: L210 x W250x H165mm
Body weight: 5.5kg
Power Input: 100-250V 50/60 Hz
Power consumption：80W
Model：LD-A120
Red light wavelength -638nm：3000mW
Green light wavelength -525nm：4000mW
Blue light wavelength -455nm：5000mW
Laser Module：Pure diodes
Laser scattering Angle: <1.2mrad
The size of the laser spot: The size of the light outlet 5*6.2mm
Control signal mode :TTL/ Simulated automatic switching
Modulating voltage：≦30K
Scanning speed: 30Kpps
Scan the Angle: Standard 60 degree
Control method: SD（It has over 200 built-in effects）, Sound control, automatic operation, DMX 18/27 channels, master/slave mode, ILDA software control
Protection level: IP 65
Body size: L210 x W250x H165mm
Body weight: 5.5kg
Power Input: 100-250V 50/60 Hz
Power consumption：80W

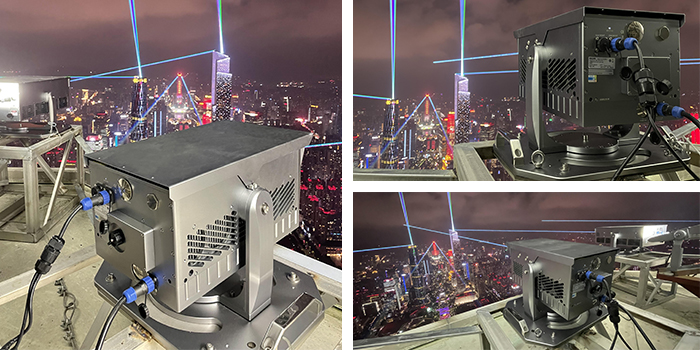

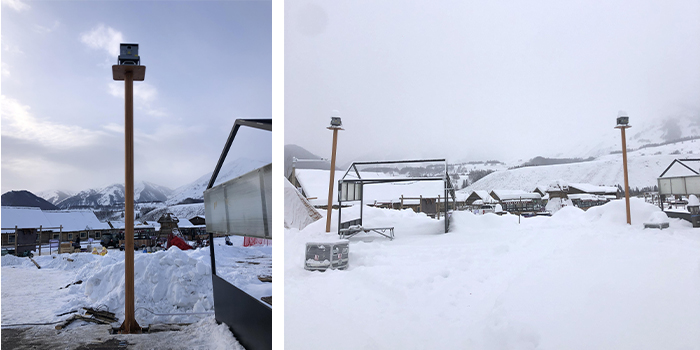

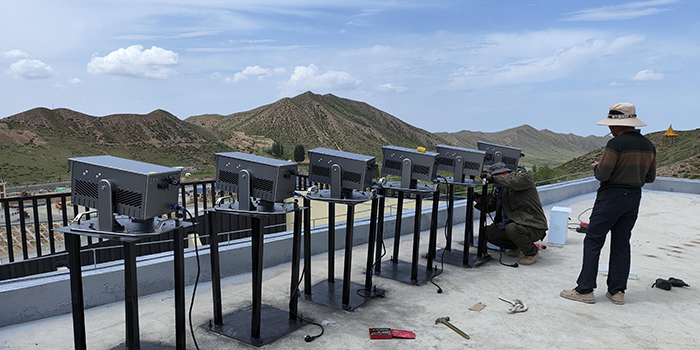

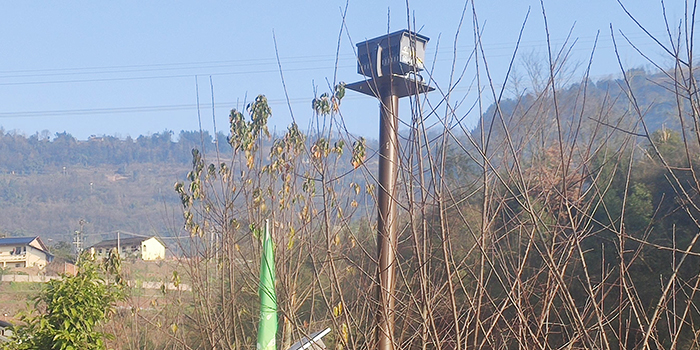

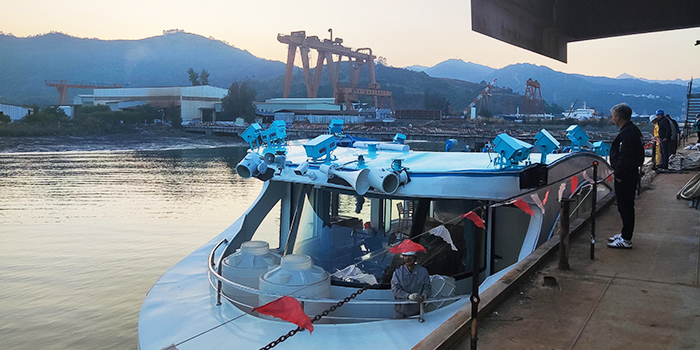

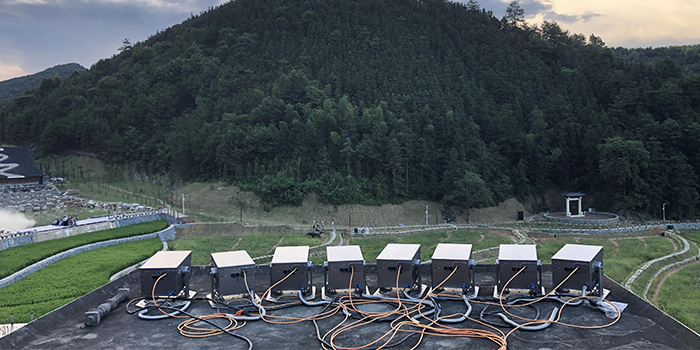

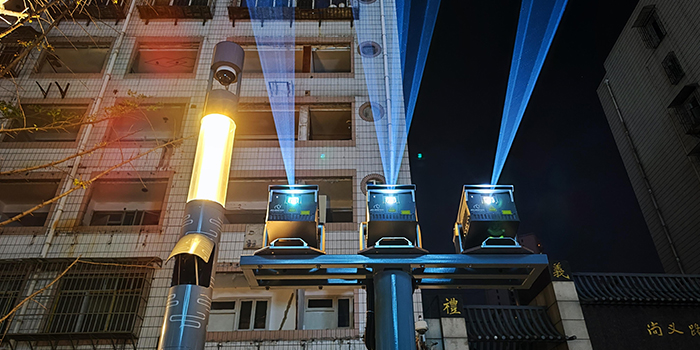

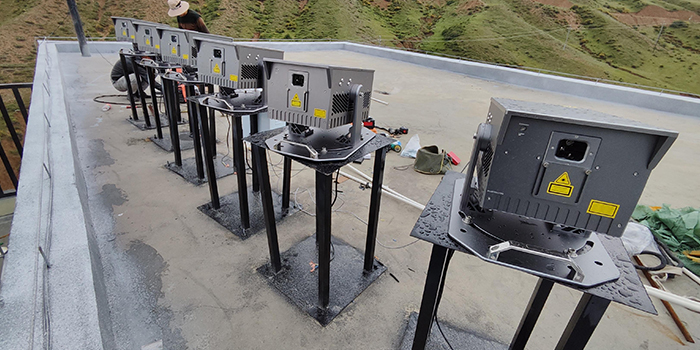

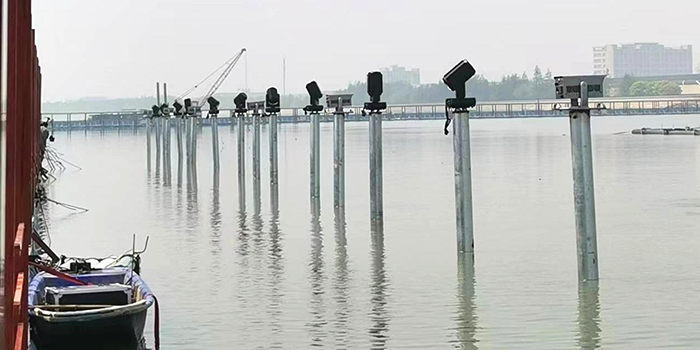

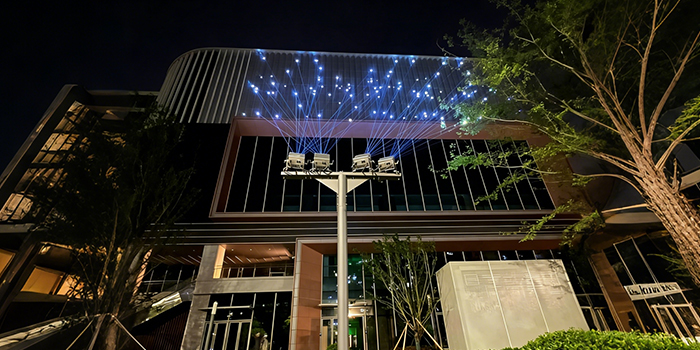

Application:
